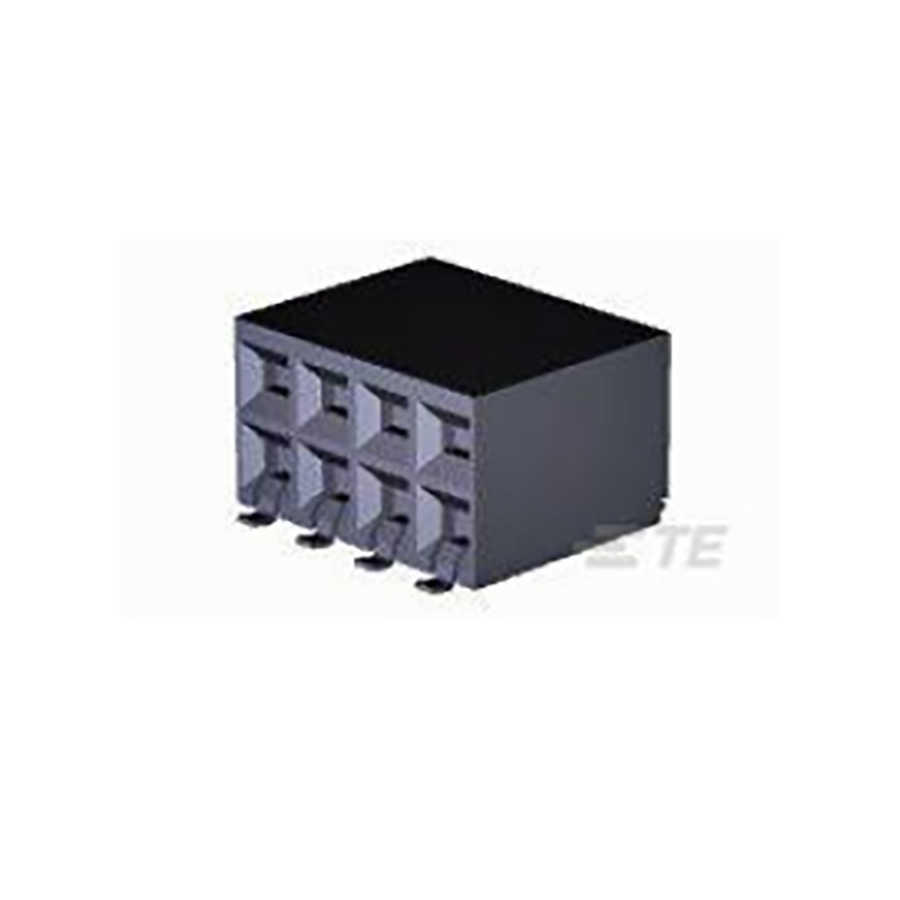

5147722-3
Manufacturer:
TE Connectivity
Mfr.Part #:
5147722-3
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Connector, Receptacle, Socket Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 6.0452 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Gold |
| Lead Length | 860 µm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Horizontal, Right Angle |
| Operating Supply Voltage | 333 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 8 |
| ELV | Compliant |
| Connector Type | Connector, Receptacle, Socket |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Style | Socket |
| Contact Resistance | 12 MΩ |
| Contact Current Rating | 2 A |
| Housing Color | Black |
| Plating | Gold |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.02 mm |
| Stackable | Yes |
| Schedule B | 8536694040 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Contact Finish Thickness - Mating | 762 nm |
| High Temperature Compatible | Yes |
| PCB Mount Retention | Without |
Stock: 2076
Distributors
pcbx
pcbxUnit Price$1.09517
Ext.Price$1.09517
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.09517 | $1.09517 |
| 10 | $1.08918 | $10.89180 |
| 25 | $1.07853 | $26.96325 |
| 50 | $1.06799 | $53.39950 |
| 100 | $1.05755 | $105.75500 |
| 300 | $0.76944 | $230.83200 |
